The Kondor Flight is Designed to Clean and Keep Cleaning The Kondor Flight is designed to clean - and built to keep cleaning. That's why every Kondor Flight includes essential solution delivery injectors, including two presoaks and a wax application. Other application options include Triple Foam, OverGlow Hi-Gloss Application, Spot-Free Rinse, additional waxes and bug spray. The galvanized travel rails and proven VFD driven 25HP motor with CAT 3535 pump also help ensure extended service life and ROI. Maximum Uptime: The Kondor Flight offers remote-access capabilities, including adjustable wash speeds, customizable menu packages, resettable faults, diagnostics and email notifications. With remote access, anything that can be done from an operator console can be done from a PC or mobile device. Flexible Programming: Industry-leading software offers the programming flexibility of two sets of four wash packages - or eight total. In addition to this, variable-frequency drive (VFD) motor controls allow for distinctive guidance of the speed of every movement - i.e., each pass on every wash package - for an entirely customizable setup.

BASE UNIT SPECIFICATIONS

BUILDING REQUIREMENTS Height Wall Mount 10'-3" Minimum Floor Mount 10'-3" Minimum Width Wall Mount 12'-3" Min to 17'-0" Max or 14'-8" Min to 19'-0" Max with optional longer Head Beam Length Floor Mount 12'-3" Minimum Wall Mount 32' (full length rails)** UTILITY REQUIREMENTS Air 1.5 SCFM @ 100 PSI Water 36 GPM @ 40 PSI Electrical 208 VAC Locations: MCC -100 Amp @ 208 VAC, 3-Phase SCC-15 Amp @ 120 VAC, 1-Phase 575 VAC Locations: MCC -50 Amp @ 600 VAC, 3-Phase SCC-15 Amp @ 120 VAC, 1-Phase NOTE: Equipment dimension specifications do not take into consideration any obstructions, unusual wash bay configurations, etc. **Rails can be cut to length for shorter bays.

Illuminated Wash Arm Manifolds Undercarriage Blaster Chemical Tire Applicator DuraBlaster (Tires & Rockers) Bug Spray Manifold Triple Foam OverGlow Hi-Gloss SealerWax DuraShiner Tire Shiner Drying Agent DryLite Dryers AirCannon Dryers Custom Branded Decals Payment Terminals Loyalty Programs In-Bay Pkg Confirmation Signs Dryer Countdown Signs Digital HD Menu Board Signs PLUS Marketing Support Services

The Easy Choice for Customers The unique overhead gantry design of the FreeStyler® has another benefit, too. It keeps the wash gear up and away from dirt and water – preventing the grit and ice related failures that plague floor-mounted rollovers. To maximize reliability and savings, Variable Frequency Drive motors provide soft starts, delivering prolonged equipment life and reduced peak energy costs. Rugged motor-and-gearbox units are epoxy coated, and floating mounts minimize bearing loads, extending component life. For peace of mind, all wash wheels simply push out of the way in the case of an accidental drive-off, eliminating potential vehicle and equipment damage. The patented pivoting top wheel floats out of harm's way, avoiding possible damage associated with competitors' guillotine-style top wheels. What's more, the optional Whisper Wheel® top wheel fill runs quietly, increasing customer perception of a thorough, yet gentle wash process.

PHYSICAL REQUIRMENTS:

Equipment Shown: Bay Length: 45' Bay Height: 11'8" Bay Width: 16'6" Physical Building Requirements: Minimum Bay Length: 32' * Minimum Bay Height: 11'8" * Minimum Bay Width: 14'9" * *Recommended Minimum size without Dryers.

INBAY AUTOMATIC CAR WASH

AUTOMATIC WASH SYSTEMS

Increase your wash potential using a smaller footprint with an In-Bay Automatic. Minimal backroom space required for installation. Minimal tunnel length for washing and drying, and minimum staff requirements all add up to maximum results!

Kondor® Flight Touchless

Reshaping the In-Bay Experience

The Kondor^® Flight is available in six distinctive Trim Levels – three Trim Levels for the 1-arm (KL1) and three Trim Levels for the 2-arm (KL2) configurations. With multiple branding and color options, the design combinations are limitless. Each offering also has its own unique look and features, meaning that – based on your bay, your budget and your business – there is a Kondor^® Flight model that can meet your exact needs.

The smartly designed overhead carriage head creates an inviting and clear bay to boost driver comfort and confidence. All Kondor Flight models feature narrow overhead rails that form an “inverted runway” – along with a treadle-free design – that helps drivers easily position their vehicle properly. An additional feature of the KL2 Kondor Flight model is its “field-goal post” shape that helps drivers center their vehicles quickly and safely. Plus, the Kondor Flight can wash large dually trucks, which considerably expands any wash site’s potential customer base.

GET A QUOTE

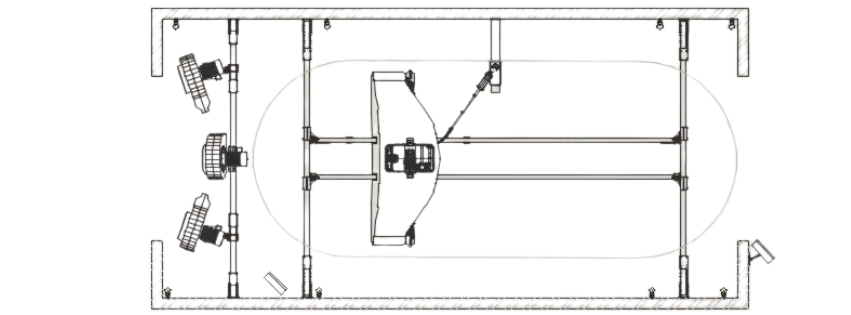

EQUIPMENT SHOWN IN SAMPLE RENDERING:

SHOWN IN THE SAMPLE DRAWING

Kondor^® Flight KL2 Two-Arm Model
Entrance Sign, In-Bay Confirmation Sign
Virtual Positioning System Photo Eyes
8-Section Package Confirmation Sign
30Hp AirCannon Dryer

FEATURES

The Kondor Flight is Designed
to Clean and Keep Cleaning

The Kondor Flight is designed to clean - and built to keep cleaning. That's why
every Kondor Flight includes essential solution delivery injectors, including two
presoaks and a wax application. Other application options include Triple Foam,
OverGlow Hi-Gloss Application, Spot-Free Rinse, additional waxes and bug
spray. The galvanized travel rails and proven VFD driven 25HP motor with CAT
3535 pump also help ensure extended service life and ROI.

Maximum Uptime:

The Kondor Flight offers remote-access
capabilities, including adjustable wash
speeds, customizable menu packages,
resettable faults, diagnostics and email
notifications. With remote access, anything
that can be done from an operator console
can be done from a PC or mobile device.

Flexible Programming:

Industry-leading software offers the
programming flexibility of two sets of four
wash packages - or eight total. In addition
to this, variable-frequency drive (VFD) motor
controls allow for distinctive guidance of the
speed of every movement - i.e., each pass
on every wash package - for an entirely
customizable setup.
BASE UNIT SPECIFICATIONS
BUILDING REQUIREMENTS

Height
- Wall Mount 10'-3" Minimum
- Floor Mount 10'-3" Minimum
Width
- Wall Mount 12'-3" Min to 17'-0" Max
- or 14'-8" Min to 19'-0" Max with optional longer Head Beam
Length
- Floor Mount 12'-3" Minimum
- Wall Mount 32' (full length rails)**
UTILITY REQUIREMENTS
- Air 1.5 SCFM @ 100 PSI
- Water 36 GPM @ 40 PSI
- Electrical 208 VAC Locations:
MCC -100 Amp @ 208 VAC, 3-Phase
SCC-15 Amp @ 120 VAC, 1-Phase
- 575 VAC Locations:
MCC -50 Amp @ 600 VAC, 3-Phase
SCC-15 Amp @ 120 VAC, 1-Phase

NOTE: Equipment dimension specifications do not take into consideration any obstructions, unusual wash bay configurations, etc.
**Rails can be cut to length for shorter bays.
OPTIONAL ITEMS
- Illuminated Wash Arm Manifolds
- Undercarriage Blaster
- Chemical Tire Applicator
- DuraBlaster (Tires & Rockers)
- Bug Spray Manifold
- Triple Foam
- OverGlow Hi-Gloss
- SealerWax
- DuraShiner Tire Shiner
- Drying Agent
- DryLite Dryers
- AirCannon Dryers
- Custom Branded Decals
- Payment Terminals
- Loyalty Programs
- In-Bay Pkg Confirmation Signs
- Dryer Countdown Signs
- Digital HD Menu Board Signs
- PLUS Marketing Support Services

FreeStyler^® Car Wash System

The five-brush automatic that cleans like a tunnel

It’s no secret – in order to attract repeat business, an In-Bay Automatic Car Wash must feel inviting and clean great. That’s why the FreeStyler® Soft-Touch Automatic is designed from “the top down” to offer an open, airy and pleasant wash experience we call ClearBay®. While floor-mounted rollovers can feel claustrophobic, the FreeStyler® is different. Its overhead gantry design opens up the wash bay, speeds up the loading process, and increases throughput. Once each vehicle is loaded, the  five-brush system delivers a thoroughly impressive wash experience and memorable clean that's sure to keep your customers coming back for more.

GET A QUOTE

AVAILABLE OPTIONS:

Wheel Stinger® and Onboard CTA

HydroBlade® with Wheel Stinger® and Onboard CTA

Triple Foam

Sealer Wax

Drying Agent

Bug Spray (with floor-mounted manifold)

Onboard & Freestanding Vehicle Dryers

Drylite Dryers

Air Cannon Dryers

Directional & Confirmation Signage

DuraShiner® CF tire shiner

RGB GuideLites

RGB BayLites

Virtual Voice Attendant (VVA)

Door Controls

FEATURES

The Easy Choice for Customers
The unique overhead gantry design of the FreeStyler® has another benefit, too. It keeps the wash gear up and away from dirt and water – preventing the grit and ice related failures that plague floor-mounted rollovers.

To maximize reliability and savings, Variable Frequency Drive motors provide soft starts, delivering prolonged equipment life and reduced peak energy costs. Rugged motor-and-gearbox units are epoxy coated, and floating mounts minimize bearing loads, extending component life.

For peace of mind, all wash wheels simply push out of the way in the case of an accidental drive-off, eliminating potential vehicle and equipment damage. The patented pivoting top wheel floats out of harm's way, avoiding possible damage associated with competitors' guillotine-style top wheels. What's more, the optional Whisper Wheel® top wheel fill runs quietly, increasing customer perception of a thorough, yet gentle wash process.
PHYSICAL REQUIRMENTS:

Equipment Shown:
Bay Length: 45'
Bay Height: 11'8"
Bay Width: 16'6"

Physical Building Requirements:
Minimum Bay Length: 32' *
Minimum Bay Height: 11'8" *
Minimum Bay Width: 14'9" *
*Recommended Minimum size without Dryers.

Barracuda Car Wash System

AWE - AUTOMATIC CAR WASH EQUIPMENT

The Barracuda system is a high-tech marvel that uses LiDAR sensors to position each vehicle with extreme precision. This is the first touch free car wash to use this revolutionary technology.

LEARN MORE

IN-BAY ACCESORIES

CAR WASH ACCESORIES & UPGRADES

Make your in-bay automatic more impressive and more powerful by pairing it with the right accessories. New doors, new LED Lighting, new impressive pay stations and new car wash signage will draw in new customers. Effective water treatment, dryers, mat cleaners, air compressors and tire shine will keep them coming back! Click through our In-Bay Automatic Car Wash Accessories pages to learn more.

Consider navigational products, car wash marketing, and customer loyalty programs too. Looking for more or need help choosing?

Contact Hydro-Spray today!

PAY STATIONS

WATER TREATMENT

RGB GUIDELITES

IN-BAY COMPONENTS

WE SUPPORT THE FOLLOWING CAR WASH SYSTEMS

We can help you repair an existing car wash, install a new car wash, or get new parts and components for your machines. Below is a list of some in-bay automatic car washes we carry parts for. Don't see yours listed below? Give us a call! We have great connections in the industry and are able to help you find the equipment and wash support services you need.

Belanger Kondor® Touchless Automatic
Belanger Cube® Car Wash System
Belanger FreeStyler® Car Wash System
Belanger Saber® Car Wash System

Hydro-Spray Rainmaker
Hydro-Spray Classic
Southern Pride Turbowash
Southern Pride SkyTrak®
Manni's Wash Systems
PDQ LaserWash® 4000
Mark VII Rollover Systems

D&S 5000 Wash Equipment
Magic Wand Wash Systems
Washworld High Velocity
Ryko Soft Gloss®
Oasis Car Wash Systems
X-stream Wash Systems
Autec InBay Express®
& More!
